Most Accurate Fluorescence Cell Counter
KEY FEATURES & BENEFITS
- FAST results in 10 sec per test
- LESS volume of sample (15 μL) required
- LARGER measuring volume
- COMPLIANT with 21 CFR part 11
- ACCURATE fluorescence cell count & viability
- SAVING cost with 4 channel slide

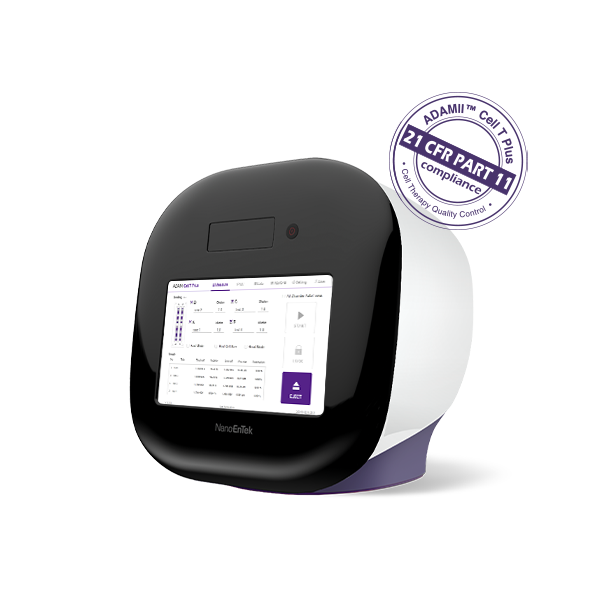

ADAM™ CellT Plus
ADAM™ CellT Plus is an automated fluorescence cell counter that utilizes
Acridine Orange (AO) and DAPI (4′,6-diamidino-2-phenylindole) to stain total and dead cells, respectively.
AO/DAPI stain nucleated cells only, effectively excluding interferences such as debris and red blood cells in samples
with complex backgrounds, thus providing accurate cell counts and viability analysis.
Moreover, ADAM™ CellT Plus is equipped with bright field imaging capabilities,
expanding its utility across a wide range of applications in both industrial and academic settings.
ADAM™ CellT Plus measures larger volume of sample, and captures more image frames each channel.
Leveraging this capability, ADAM™ CellT Plus provides superior repeatability and accuracy
compared to other cell counting products in the market.
ADAM™ CellT Plus not only measures the number of total cells, viable cells, non-viable cells, and viability results.
In addition, they analyzes the cell size and cell aggregation ratio as well.
Accuracy & Precision
|
|
|
Data were compared between flow cytometer and ADAM™ MC Plus & CellT Plus results in 20 different PBMC concentration sample. |
|
Data were compared between manual count and ADAM™ MC Plus & cellT Plus results in 20 different PBMC concentration samples. |
|
|
|
A high-concentration (1.8E+07 cells/mL) of PBMCs was diluted and a dilution series was counted by ADAM™ MC Plus & CellT Plus. It shows excellent dilution linearity and reproducibility. |
|
Sample with low, medium and high concentration of PBMCs were counted with three ADAM™ MC Plus & CellT Plus. |
A Wide Range of Applications
21 CFR Part 11 Compliance
There are three designated user groups: Admin, Supervisor, and User.
Admin have the highest level of privileges that can set account level to the users or release the accessibility to the data.
| |
Record & Audit Trail Every action of users is recorded in an audit trail which includes the date, time, and specific details of the action. All action logs are recorded to ensure data integrity and traceability of data management. |
Electronic Signature All reports may be digitally signed. The electronic signature information includes the name and user ID of the signer, the date and time of signature execution and meaning (e.g. review or approval) of the signature. |
|
|
ADAM™ calibration bead and QC slide (optional) allow quick diagnosis when problems occur, which ensures accuracy of the instrument.
Installation Qualification (IQ), Operational Qualification (OQ) and Performance Qualification (PQ) are designed to validate performance of the instrument.
NanoEntek blog is now open!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-
Cat no.
ADAM–CellT Plus
-
Focus
Auto–focusing
-
Objective lens
4 X
-
Measuring range
5 X 10E4–2 X 10E7 cells/mL (Detectable)
4 X 10E5–1 X 10E6 cells/mL (Optimal) -
Size and weight
277 x 276 x 270mm, 7kg
-
Loading volume
15 uL / test
-
Channel
Bright field / 2 Fluorescence (AO & DAPI)
-
Staining method
Acridine orange / DAPI solution
-
Measuring volume
3.2 µL / test
-
Measuring time
Accuracy mode (AO/DP, Default): 17 sec/test
Fast mode (AO/DP): 10 sec/test
Related downloads Total 2
-
ADAM™ CellT Plus_Brochure
-
ADAM™ CellT Plus_Manual
