Most Accurate Fluorescence Cell Counter
KEY FEATURES & BENEFITS
- Only 15 μL of sample volume needed
- Single solution (mixed with AO/DAPI)
- 4 tests available with 1 slide
- Total cell counting & viability
- 40 seconds per slide (fast mode)
- Aggregation %
- Low CV value

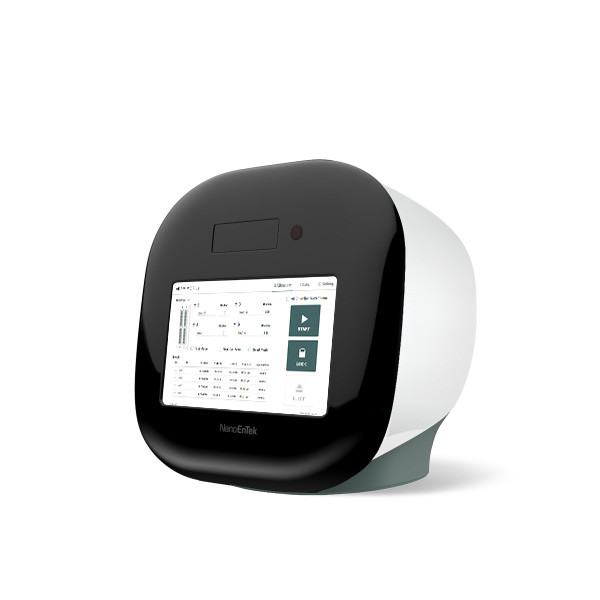

ADAM™ MC Plus
ADAM™ MC Plus represents a new standard in highly accurate automated fluorescence cell counting, featuring bright field and two fluorescence channels (AO/DAPI). In addition to counting total cells, viable cells, non-viable cells, and assessing cell viability, it also measures cell size and aggregation ratio with high accuracy and speed.
Discover exceptional simplicity, convenience, and efficiency of cell counting with ADAM™ MC Plus!
Bright field and 2 FLs(AO/DAPI) Total cell counting & viability Cell size & Aggregation% Excellent accuracy and reproducibility |
10 sec per test 15 μL sample loading volume 3.2 μL measuring volume 13 captured images per channel |
One-Step AO/DAPI Fluorescent Staining
ADAM™ MC Plus is an automated fluorescence cell counter utilizes Acridine Orange (AO) and DAPI (4′,6-diamidino-2-phenylindole) to stain total and dead cells, respectively. AO/DAPI stain nucleated cells only, effectively excluding interferences such as debris and red blood cells in samples with complex backgrounds, thus providing accurate cell counts and viability analysis.
Large Measuring Volume | Expanded Field of Views
ADAM™ MC Plus measures larger volume of sample, and captures more image frames each channel. Leveraging this capability,
ADAM™ MC Plus provides superior repeatability and accuracy compared to other cell counting products in the market.
Cell Size Measurement & Cell Aggregation Rate
ADAM™ MC Plus not only measures the number of total cells, viable cells, non-viable cells, and viability results.
In addition, they analyzes the cell size and cell aggregation ratio as well.
|
| |
Data were compared between flow cytometer and ADAM™ MC Plus & CellT Plus results in 20 different PBMC concentration sample. |
| Data were compared between manual count and ADAM™ MC Plus & cellT Plus results in 20 different PBMC concentration samples. |
|
| |
A high-concentration (1.8E+07 cells/mL) of PBMCs was diluted and a dilution series was counted by ADAM™ MC Plus & CellT Plus. It shows excellent dilution linearity and reproducibility. |
| Sample with low, medium and high concentration of PBMCs were counted with three ADAM™ MC Plus & CellT Plus. |
Intuitive GUI
Applicable to Various Cell Types
NanoEntek blog is now open!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-
Cat no.
ADAM™ MC Plus
-
Focus
Auto–focusing
-
Objective lens
4 X
-
Measuring range
5 X 10E4–2 X 10E7 cells/mL (Detectable)
4 X 10E5–1 X 10E6 cells/mL (Optimal) -
Size and weight
277 x 276 x 270mm, 7kg
-
Loading volume
15 uL
-
Channel
Bright field / 2ch (AO & DAPI)
-
Staining method
Acridine orange / DAPI solution
-
Measuring volume
3.2 µL / test 1ch
-
Measuring time
< 40 sec / test (4ch)
Related downloads Total 2
-
ADAM MC Plus_Brochure_NanoEntek
-
ADAM MC Plus_Manual_NanoEntek
