Image-based immunophenotyping instrument for cell therapy
ADAMIITM CDx, Image-based immunophenotyping instrument with 4-channel (Bright field and 3 fluorescent channels) for cell therapy R&D and manufacturing process.
KEY FEATURES & BENEFITS

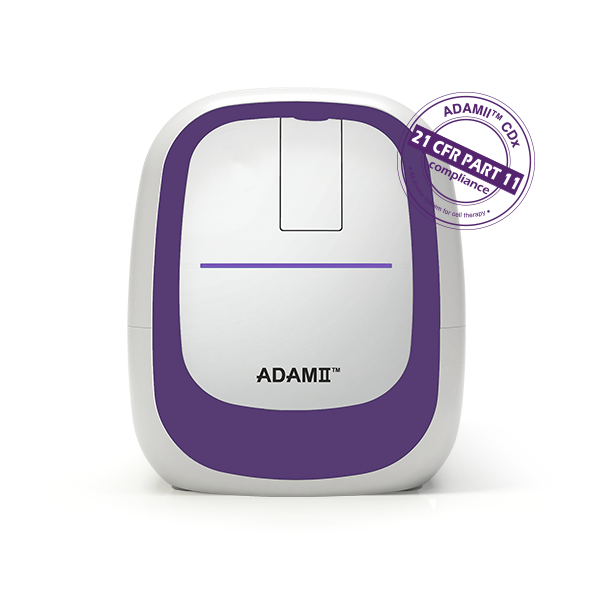

ADAMIITM CDx
Versatile QC Instrument for Cell Therapy
ADAMIITM CDx, Image-based immunphenotyping instrument for cell therapy
ADAMIITM CDx, Image-based immunophenotyping instrument with 4-channel (Bright field and 3 fluorescent channels) for cell therapy R&D and manufacturing process QC (quality control). In manufacturing process, labor-intensive and repetitive work could be efficiently reduced by using ADAMIITM CDx.
Target cells "See your small cells"
ADAMIITM CDx has powerful optics (10 X objective lens, bright field, three fluorescence channels) which can clearly observe various cell lines, stem cells, PBMCs, and even small sized-immune cells.
- Immune cell, CAR-T cell, NK cell, B cell - PBMC, Stem cell - Mammalian cell, Primary cell, Cell line |
|
Powerful optics (light source and filter set)
CD marker based identification, absolute counting
Every cell expresses specific proteins on cell surface, called as cell surface marker or CD marker. In the development and manufacturing process of cell therapy, cell identification based on CD markers is essential. There are various panel sets for ADAMIITM CDx, which can do cell identification and absolute counting (include ratio). Currently, four panels (T cell, NK cell, B cell, Monocyte) are ready to use.
Accurate measurement and high reproducibility
Non-specialist and un-skilled users can produce accurate results and high reproducibility with ADAMIITM CDx. If you and your lab have problem to use flow cytometry, ADAMIITM CDx would be a good alternative.
Cell based assay for cell therapy QC
ADAMIITM CDx is designed as an Image-based immunophenotyping instrument to perform all process and QC of cell therapy manufacturing with various functions.
- Major function: Absolute counting of CD (cluster of differentiation) marker positive cells
. T cell panel: CD3, CD4, CD8
. NK cell panel: CD3, CD56&CD16, CD45
. B cell panel: CD3, CD19, CD45
. Monocyte panel: CD3, CD14, CD45
- Sub functions:
. High-quality Image-based immunophenotyping instrument for cell processing
. Easy to use in QC process
. Absolute CD+ cell counting
. Various CD marker panels (T, NK, B cell and etc.)
NanoEntek blog is now open!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-
Product name / Cat. No.
ADAMII–CDx
-
Light source
Bright field, UV / Blue / Green LED
-
Objective lens
10 X
-
Analysis time
4 min 10 sec (55 frames for each channel)
-
Loading volume
25 μL (1ch, 2ch)
-
Panels
T cell: CD3, CD4, CD8
NK cell: CD3, CD56&CD16, CD45
B cell: CD3, CD19, CD45
Monocyte: CD3, CD14, CD45 -
weight
19.3 kg
-
Dimensions
300 x 420 x 370 mm (W x D x H)
-
Measuring range
5 X10E4–5 X10E6 cells/mL
-
Measuring volume
≤ 5.7 μL
Related downloads Total 1
-
ADAMII-CDx_Brochure_NanoEntek
