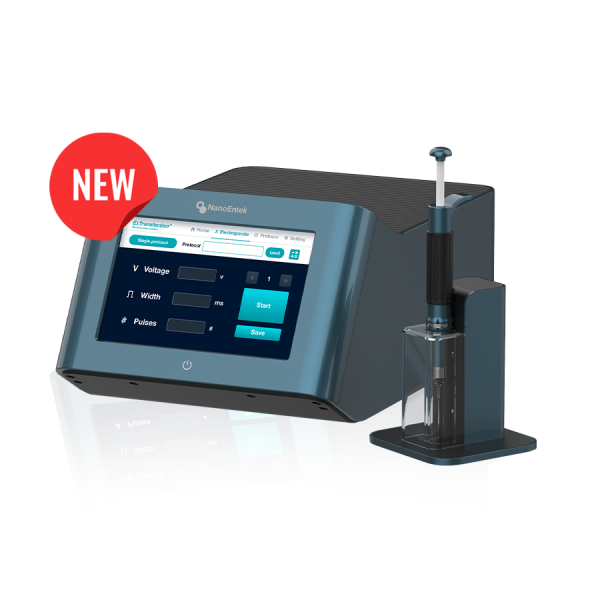

Pipette-style Electroporation System
KEY FEATURES & BENEFITS
- High-Efficiency Transfection and Superior Viability
- Applicable with Various Cell Types
- Consistent Electric Field
- Gold-coated electrodes
- Wide Range of Sample Sizes: 10 μL and 100 μL
*Available Worldwide (except in the USA)
⦁ High-Efficiency - Delivers intensive and even electrical pulses without unexpected loss
⦁ Superior Viability - Maintains high cell viability throughout the process
⦁ Applicable - Compatible with various cell types, including mammalian, primary, stem, and blood cells
⦁ Consistent - Ensures reproducible results under identical conditions
⦁ Usability - Supports 10 μL and 100 μL sample volumes for different experimental needs
⦁ Optimized Protocol - 300 cell-specific protocols available in the Protocol library
Protocol Library
Go to Library→
Microporation Technology
NanoEntek is the original developer of microporation technology, designed to overcome the limitations of traditional electroporation methods using cuvettes. The core of microporation technology lies in its use of a capillary-type electric chamber with a minimal electrode surface area in direct contact with the sample.
Small electrode surface area and increased gap between electrodes ensure uniform electric field within ExTransfection™ Tip. The insulated capillary minimizes electrolysis during electroporation, enhancing of transfection efficiency and cell viability.
Comparison of ExTransfection™ Gold-Tip and Cuvette
Applications: Gene Editing, CRISPR/Cas9
CRISPR/Cas9 is a powerful genome editing tool that enables precise DNA modifications, offering potential cures for genetic diseases and advancements in personalized medicine.
Precise gene editing by CRISPR/Cas9 allows targeted correction of harmful mutations, transforming genetic disorder treatments.
ExTransfection™: Empowering Your CRISPR/Cas9 Research
ExTransfection™ is a highly efficient tool for gene editing, achieving a high gene knockout percentage and enabling important analyses such as double gene knockout, surface markers, transcription factors, and intracellular sensors.
Through this, it allows for precise analysis of gene functions in immune cells, making a significant contribution to immunological research and therapeutic development.
Visit NanoEntek blog now!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-
Product name / Cat. No.
ExTransfection™ Electroporation System / EXT1000
-
Reaction volume
10 μL or 100 μL
-
Cell concentrations (Recommended)
5 × 10E4–5 × 10E5 cells for 10 μL tip
5 × 10E5–5 × 10E6 cells for 100 μL tip -
Pulse voltage
500–2,500 V
-
Pulse width
1–100 ms
-
Number of pulses
1–10
-
User interface
8 inch touch screen
-
Electrical rating
100–240 VAC, 4.0 A, 50/60 Hz
-
Electrical input
24 VDC, 7.5 A, 180 W
-
Device weight
6 Kg
-
Device dimensions
251.6 (W) x 383.4 (D) x 185.1 (H) mm
Related downloads Total 4
-
ExTransfection_Brochure_NanoEntek
-
ExTransfection_Leaflet_NanoEntek
-
ExTransfection_Manual_NanoEntek
-
ExTransfection_Quick Guide_NanoEntek
ExTransfection™ Protocol Library
ExTransfection™ provides open protocols that make it easy for users to set up and run experiments. Its 24-well optimization method helps users to optimize transfection protocols easily and quickly.
ExTransfection™ also offers a pre-programmed optimization protocol that helps an easy and quick optimization of electrical parameters for both adherent and suspended cells.
