Automated Somatic Cell Counter
A Better way to check MILK QUALITY

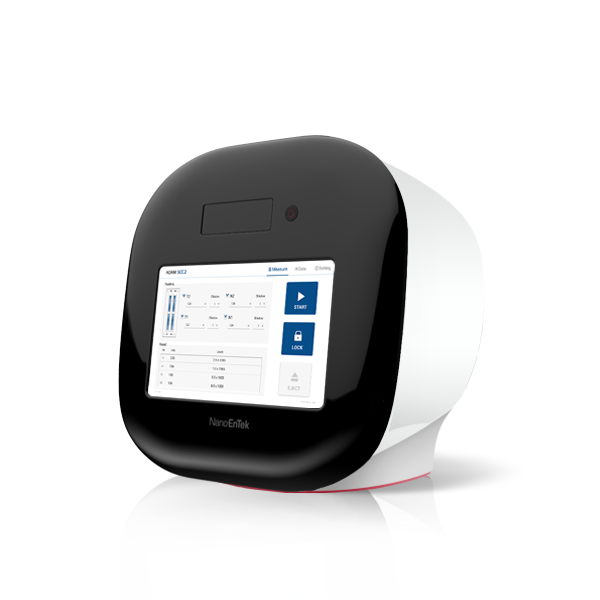

ADAM™-SCC2 counts the number of somatic cells to determine the quality of raw milk with unique image cytometer technology.
ADAM™-SCC2 can be used as an ideal equipment in the research field, dairy farms, milk manufacturing facilities,
and veterinary institutes working with somatic cell analysis.
-Accurate results using PI staining method
-Easy operation
-Optimized image analysis software
Principle of counting somatic cell
After the samples are stained with fluorescent dye, propidium iodide, which is intercalated DNA to stain the nucleus of target cells,

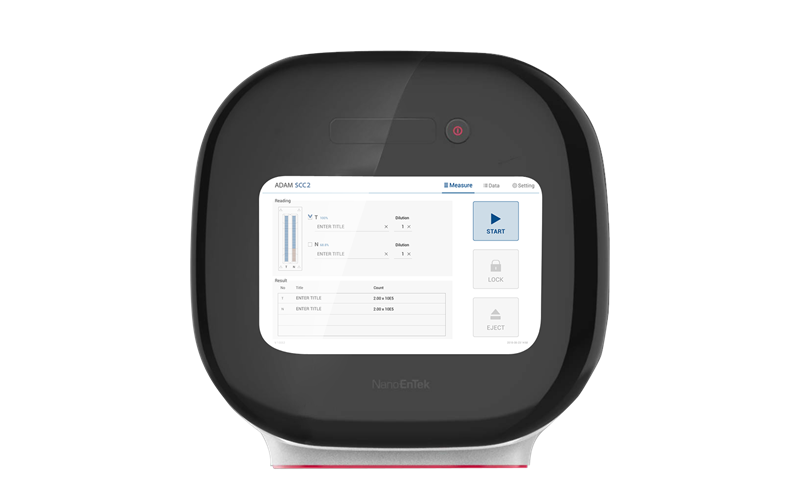

then simply drop the sample in to a chip and slide it into ADAM™-SCC2, then ADAM™-SCC2 takes images automatically.
The obtained images are processed by image analysis software to count the somatic cells.
Multiple images are taken and their values are averaged out, so the result is accurate and reliable.
Comparison of somatic cell image taken with ADAM™-SCC2 to DMSCC
Repeatability
The below data shows that samples with low, medium, and high concentrations of cells were counted with ADAM™-SCC2.
Accuracy, Linearity
Comparison between ADAM™-SCC2 and Direct Microscopic Somatic Cell Counting
NanoEntek blog is now open!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-
Product name / Cat. No.
ADAM SCC2 / ADAM SCC2
-
Loading Volume
13 μL
-
Measuring Volume
3.4 μL
-
Measuring range
0.05–1.1 5x 10E6 cells/mL
-
Focus
Auto focusing
-
LED
4W Green LED
-
Weight
7.0 kg
-
Size
277 X 276 X 270 mm
-
Analysis time
< 13 sec
-
Dyes
PI (Propidium Iodidie)
-
Connectivity
WiFI (USB Dongle)
-
Cell type
Somatic cell
Related downloads Total 2
-
ADAM-SCC2_brochure_NanoEntek
-
ADAM-SCC2_user_manual_NanoEntek
