The World's First True Disposable Hemocytometer

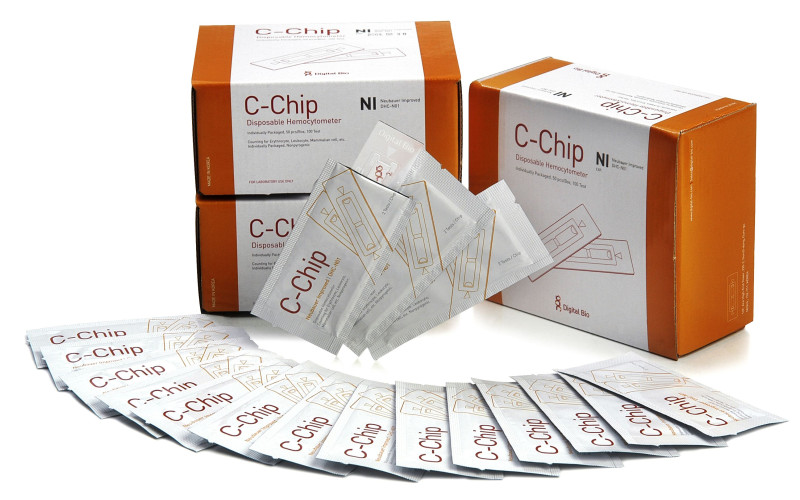

C-Chip 2ch, disposable plastic hemocytometer
- No coverslip required
- No need to wash for reuse
- Accurate and reliable
- Made of sturdy and strong Quartz grade optical plastic
- Bright grid pattern

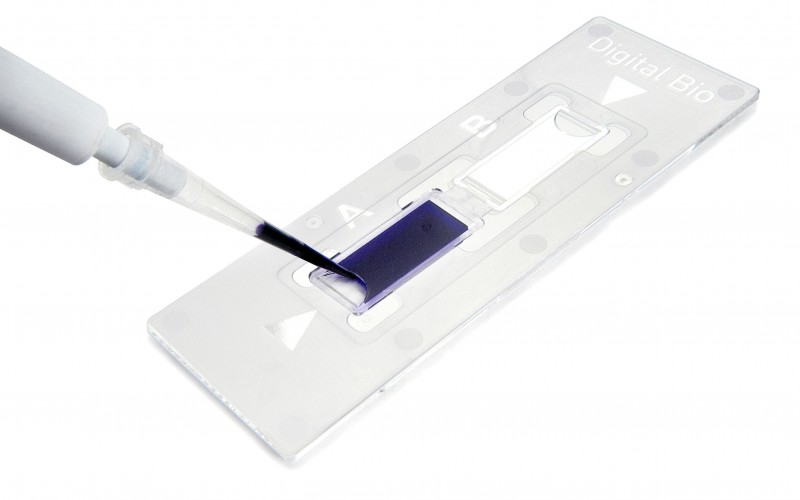

Simple & Easy steps to operate
Various grid types for different uses
There are 5 different grid patterns; Neubauer Improved(mammalian/primary cell), Burker, Burker Turk(combination of Burker and Thoma), Fuchs Rosenthal(Cerebrospinal fluid cell) and Malassez(Cerebrospinal fluid cell)
Advantage #3
Accuracy & Repeatability
The graph on the left shows an excellent correlation of cell counting between glass hemocytometer and C-Chip 2ch. The graph on the right shows that C-Chip 2ch has less error of cell counting than glass hemocytometer due to the smaller standard deviation.
Application
- Cell culture: cell concentration measurement / cell viability test
- Microbiology: bacteria & fungal spore counting
Ordering Information
NanoEntek blog is now open!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-
Product name / Cat. No.
DHC–N01(Neubauer Improved), DHC–B01(Buker), DHC–B02(Burker Turk), DHC–F01(Fuchs Rosenthal), DHC–M01(Malassez)
-
Dimension
25(W) X 75(L) X 1.6 (T) mm
-
Chamber depth
100 µm (DHC–N01), 100 µm (DHC–B01), 100 µm (DHC–B02), 200 µm (DHC–F01), 200 µm (DHC–M01)
-
Loading volume
10 µL (DHC–N01), 10 µL (DHC–B01), 10 µL (DHC–B02), 20 µL (DHC–F01), 20 µL (DHC–M01)
-
type
5 grid types
-
Sample injection amount
10 µL (DHC–N01, B01, B02) / 20 µL (DHC–F01, M01)
Related downloads Total 2
-
C-chip_brochure_NanoEntek
-
C-Chip 2ch_IFU_NanoEntek
